Model 750T Utility Aircraft - Explorer Aircraft

Model 750T

Explorer 750T

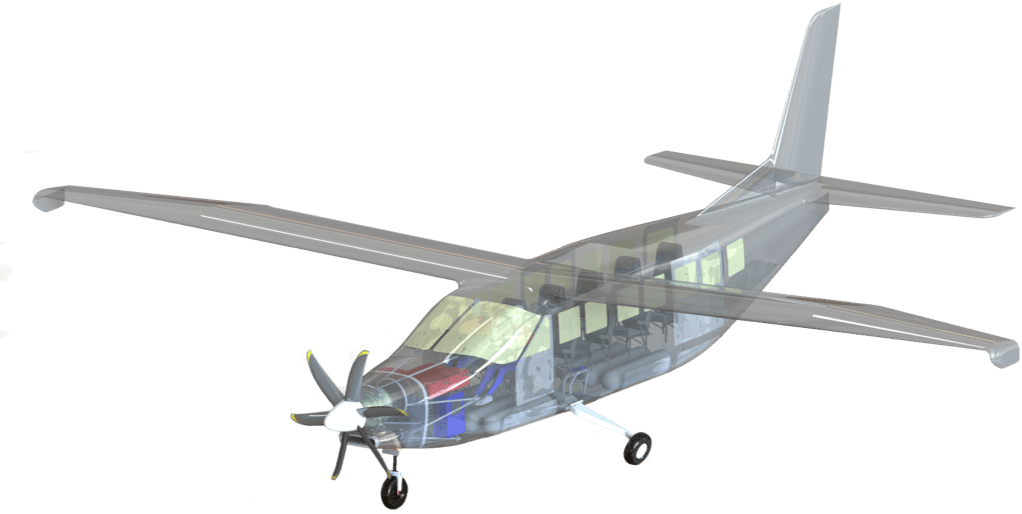

The sixteen passenger 750T provides versatility for your business whether carrying cargo, people, or both. The spacious cabin offers passengers the utmost comfort and easily accommodates bulky cargo. With a total of 480 cu. ft. of cargo space, the 750T will be the largest cargo-dedicated single-engine turboprop available.

Now you can have performance that exceeds commuter twin engine aircraft, carry more cargo and people but with single engine operating costs.

Explorer 750T Specifications

PERFORMANCE

Cruise Speed

215 ktas

Stalling Speed
(Flaps Down)

62 ktas

Max Rate of Climb,
Sea Level

2000 ft/min

Service Ceiling

25000 ft

7600 m

Takeoff Distance,
Ground Roll

1200 ft

365 m

Max Range

140 kts 8000 ft 2100 nm/14 hrs
217 kts 8000 ft 1000 nm/4.6 hrs

FUEL

Integral Wing Fuel Tanks

400 gal

1513 l

Power plant

Pratt & Whitney Canada
PT6A-140A

867 hp

4 Blade Hartzell Propeller

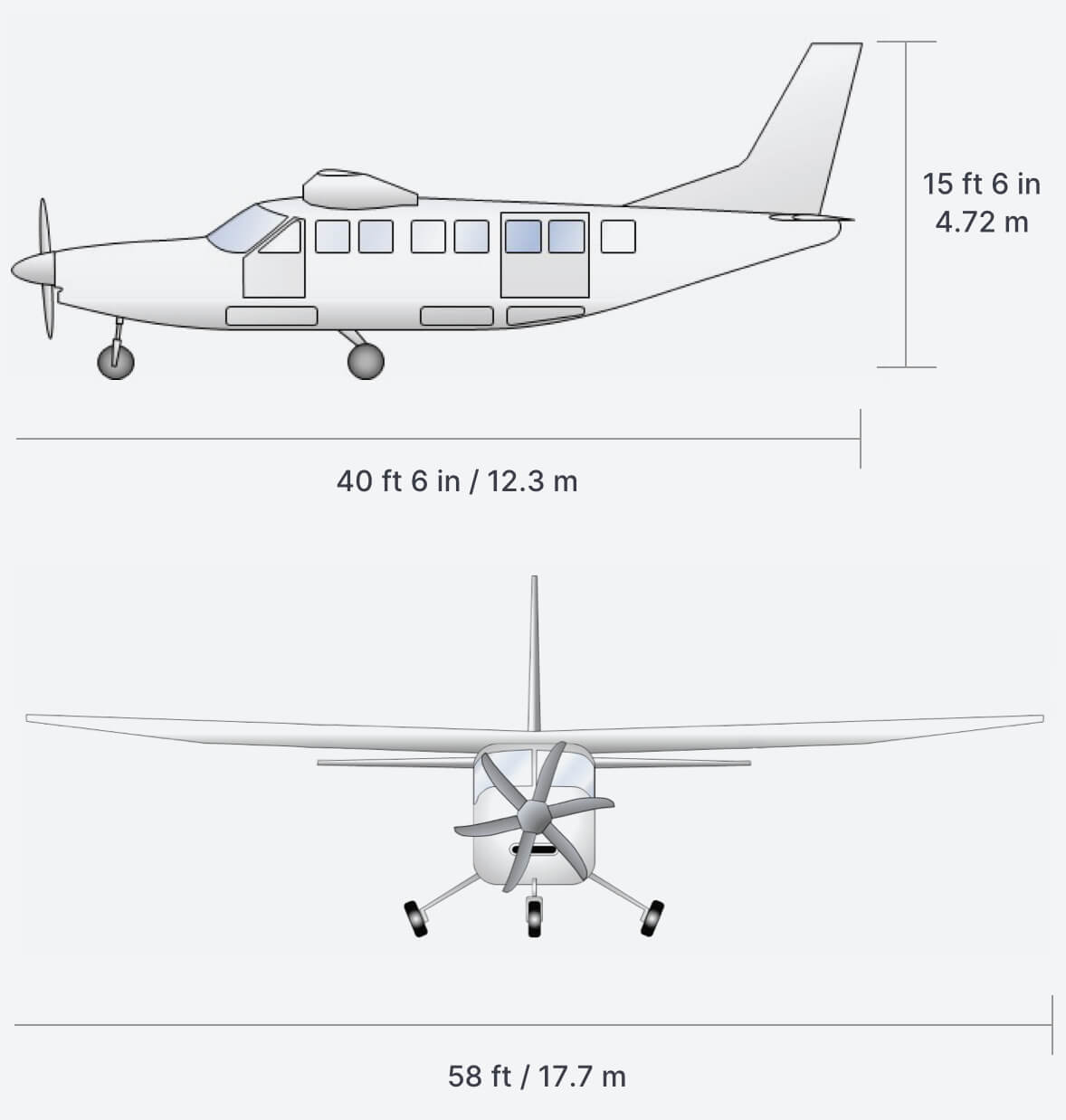

Internal Dimensions

Cabin Length

261 in

6.63 m

Max Width

62 in

1.57 m

Max Height

54 in

1.37 m

Main Cabin

400 cu ft

11.3 cu m

Belly Cargo

80 cu ft

2.3 cu m

Weight & loadings

Weight Empty

4680 lbs

2123 kg

Max Takeoff Weight

9050 lbs

4105 kg

Max Useful Load

4320 lbs

1960 kg

Max Wing Loading

33.20 psf

Max Power Loading

10.44 lb/hp

*All specifications are preliminary, based on manufacturer's calculations, and subject to change. All performance figures are based on standard day, standard atmosphere, sea level, gross weight conditions unless otherwise noted.
